Sunrise Scientific INC

Biotech

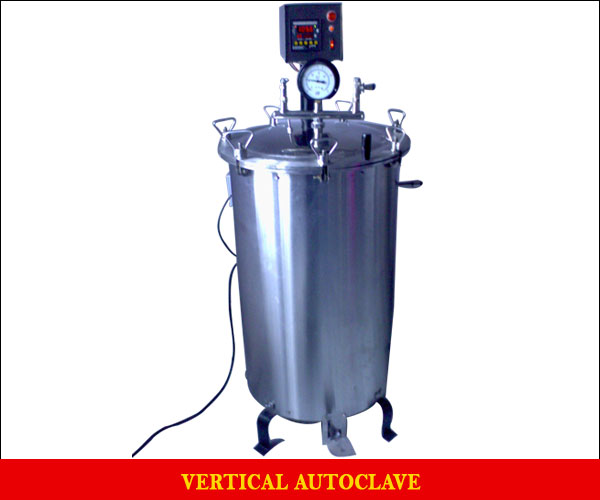

Vertical Autoclave (Complete Stainless Steel)

Inner in inches(Dia.xHt)	Capacity	kw
12 x 22	40 lit.	2
14 x 24	60 lit.	3
16 x 28	100 lit.	4
18 x 30	125 lit.	5
22 x 30	185 lit.	6
24 x 36	260 lit	9

Optional:

•	Auto pressure control switch to set any min. and max. Pressure level
•	Programmable temperature controller cum timer for auto cutoff with alarm.
•	Low water level cutoff with S.S. heater to avoid heater Damage dry run.

Vertical Autoclave

Inner 2mm thick plate and outer chamber made of 304 Grade S.S. with quality insulation, supplied with heavy duty S.S lid, silicon gasket, swing nut S.S locking system, suitable no. of material loading perforated baskets in S.S. lid opening by pedal lifting device. Control panel with digital controller cum timer (optional). The unit supplied with safety valve, mechanical spring-loaded valve, steam release valve, 4” dia pressure gauge durable S.S. heaters to work on 230V.

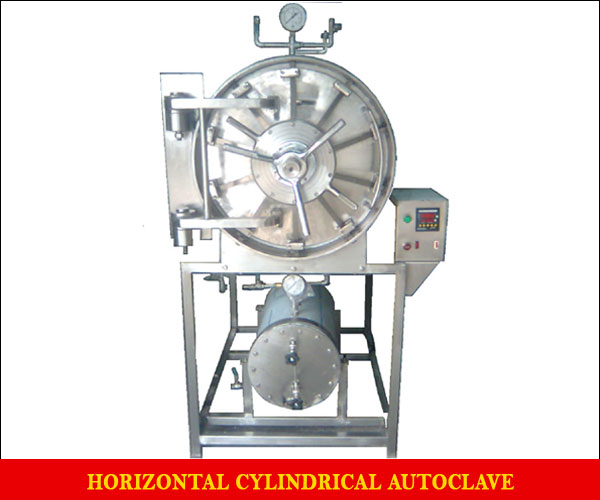

Horizontal Cylindrical Autoclave – with Radial Locking System.

Inner in inches(Dia. x Depth)	Capacity	kw
16 x 28	90 lit	4
18 x 30	120 lit	5
22 x 30	175 lit	6
22 x 36	225 lit	7
24 x 36	260 lit	9
30 x 48	550 lit	12

Horizontal Cylindrical Autoclave

Optional:

•

Auto pressure control switch to set any min. and max. pressure level.

•

Programmable temp. cum timer for auto cutoff with alarm.

•

Low water level cutoff with S.S. heater to avoid heater damage dry run.

•

Triple Jacket for dry steam sterilization with moisture traps 30% EXTRA on the basic price.

Inner and outer chamber made of 304 Grade S.S. with quality insulation, lid with radial locking system, Silicon gasket. Chamber Mounted on M. S sturdy stand with the steam boiler beneath. Suitable no. of S.S. perforated trays with shelves for easy handling of materials. Control panel with Programmable digital controller cum timer, auto pressure switch (optional). Supplied with safety valve, mechanical spring loaded valve, steam release valve, 4” Dia. pressure gauge durable S.S. heaters to work on 230V/ 415 V

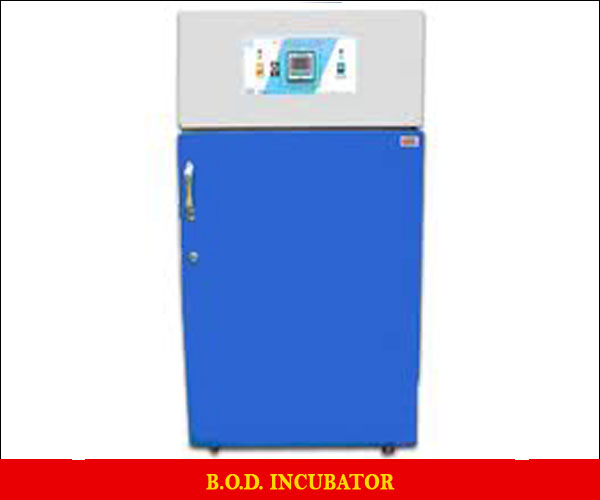

B.O.D. Incubator Temp. Range 5.C to 60.C +/- 0.5.C

Cft / lit.	Outer size(cms)	Inner size(cms)	Shelves
3 / 95	50 x 60 x 100	40 x 40 x 55	2
6 / 170	62 x 67 x 138	50 x 41 x 84	3
10 / 285	70 x 75 x 153	58 x 49 x 99	4
12 / 340	74 x 78 x 161	62 x 52 x 102	5

Optional:

•	Chamber illumination with fluorescent lights regulated by 0-24 hrs timer.
•	Voltage stabilizer.

B.O.D Incubator Temp.

Control panel:

All controls and circuitry are housed at the top of the incubator and therefore protected from spillage. µp based µp based PID digital temperature controller cum indicator with feather touch buttons, uniform front panel sticker, and protective fuse.

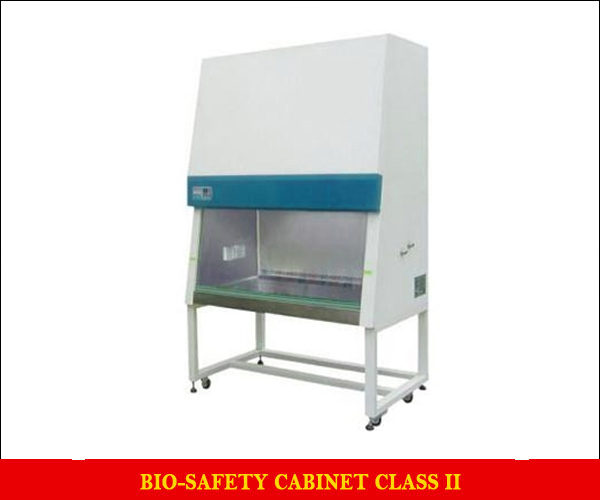

Bio-Safety Cabinet class II

Working Area	3’ x 2’ x 2’	4’ x 2’x 2’
Construction	CRCA Steel sheet 16G (powder coated).
Filtration I	Pre-filter non woven pleated (5 micron particles).
Filtration II	HEPA filter 0.3micron at an efficiency of 99.97%
Motor Blower	¾ HP motor with aluminium curved impeller.
S.S. Work Table	5mm perforation at 10mm pitch on front and rear edges.
Work Surface	SS with perforation at 5”along the front and rear edges.
Manometer	differential pressure between the Hepa plenum and the atmosphere.
Lighting	fluorescent lamps and U.V lamps with guard for eye protection

Bio Safety Cabinet Class II

Special features:

•

Flame umbrella made in S.S with gas cock & electric sockets at sides.

•

Powder coated steel construction mounted on castor wheels with lock for mobility with Stability

•

Protects the product and the user with zero contamination risk.

•

Vertical laminar airflow with air intake across access opening.

•

20% air exhausted, via HEPA filter, 80% re-circulated into the sterile area.

•

Negative pressure in all areas which are subject to contamination risk ensures, that even if a leak should occur in the sealing system, all particles will be returned to the pressure chamber and will be absorbed by the air circulation and the exhaust air filter.

•

Special exhaust system: to throw the contaminated air in the atmosphere safely.

•

Provides a comfortable sit down working position with foot rest.

•

STAINLESS STEEL perforated grill to the hepa filter gives good protection.

•

Full sliding clear polycarbonate door with adjustable heights.

•

Single piece HEPA FILTER ensures against dead air space inside the working area.

Optional:

•

Exhaust ducting with suitable fittings per running feet.

•

Virus burn out unit: ensures total destruction of pathogens Present in air being exhausted from the cabinet.

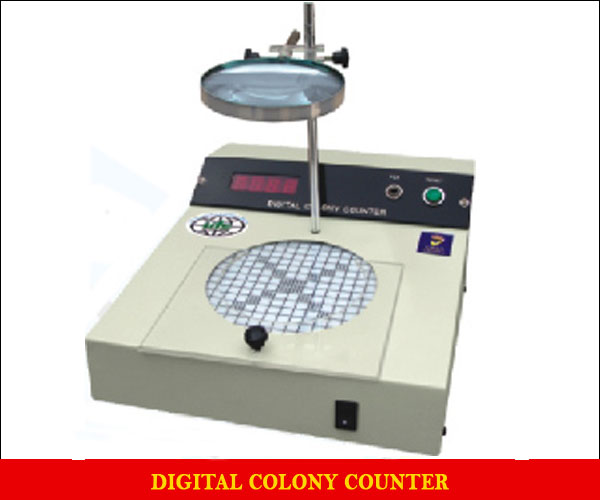

Digital Colony counter: meant for counting on slides or in Petri dish.

4 digit display
6 digit display

Cabinet made of Mild Steel Duly powder coated. A diffused light is provided in the cabinet for easy viewing complete unit supplied with counting plate 100 mm Dia with magnifying lens and sensing marker. Supplied with three core wire and plug to work on 230V AC

Digital Colony Counter

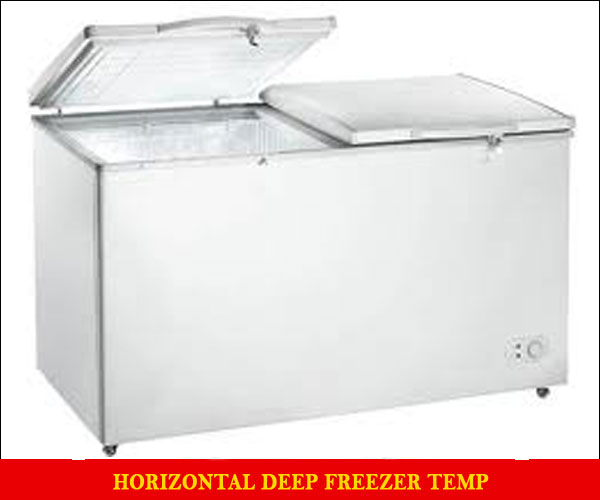

Horizontal deep freezer Temp: - 20.C OR -35.C

Capacity	Inner size
170lit	80 x 37 x 68
265lit.	120 x 37 x 68
425lit.	130 x 50 x 78

Horizontal Deep Freezer

Vertical Deep freezers

170lit	50 x 43 x 85
265lit	58 x 50 x 99

Inner chamber 304 G S.S & outer M.S. powder coated having PUF insulation to minimize the heat loss. 100% leak proof door with imported beadings ensures against loss of temperature and sweating.

Vertical Deep Freezer

Hermetically sealed refrigeration is most economical, trouble free and exceptionally quiet. Fast freezing arrangements is done by providing the cooling coil beneath every trays /shelves. Control panel with µp based digital controller cum indicator with 200secs. Time delay, built-in voltage stabilizer, protective fuse etc.

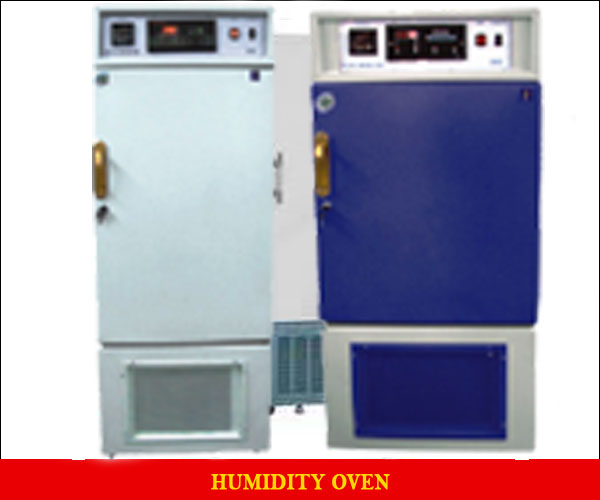

Humidity Oven: for stability test at 40.C ±1.C. Humidity at 75% ±3% RH Constantly

Inner volume	Inner Chamber Size (cms)
6 cft / 170 Lit	50 x 42 x 83
10 cft / 270 Lit	57 x 55 x 87
12 cft / 325 Lit	61 x 55 x 100

Humidity Oven

Optional:

•

Above chamber with temperature range (with cooling) 10oC to 50.C ±1.Cand humidity 55% to 95% ±3% shall cost extra

•

llumination of inner chamber with fluorescent tube controlled by 0-24hours cyclic timer

Inner 316 grade S.S., outer M.S powder coated. Unit has forced air circulation. Door provided with center glass for viewing. Humidification by special dry steam humidifier, controlled by solenoid valve consumes less water with effective control to maintain less than plus minus 3% RH. Temp. & humidity controlled by micro processor based controllers with decimal resolution Uniform temp. & RH with scientifically designed air ducting also improves accuracy. Imported beading & door lock handle ensures 100% air tight closer which is the key to trouble free operation. Temp. over shoot cutoff. Drain, water collection tray & other safety features are provided.

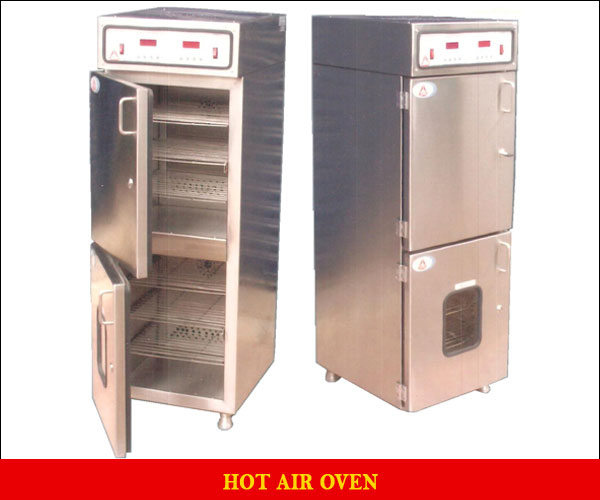

Hot Air Oven Temp. Up to 200.C ±-1.C

Inner in inches W x D x H	Watts	Trays
14 x 14 x 14	750	2
18 x 18 x 18	1000	2
18 x 18 x 24	1000	3
24 x 24 x 24	1500	3
24 x 24 x 36	2000	4
24 x 24 x 48	2500	5
24 x 24 x 60	3000	6

Hot Air Oven

Optional:

•

Air circulating fan

•

Digital temp. Controller for temperature accuracy ±0.5.C

•

S.S. perforated trays instead of wire mesh tray will cost 10% extra on basic price.

Construction:

Well- insulated outer body of 18G steel sheet powder coated, inner 304 G stainless steel with shelves and trays. Single door fitted with lock. Forced air circulation fan for uniform temperature inside the cabinet. control panel with PID digital temperature controller, (optional) with air ventilators, main cord, 3 pin plug top for operation at 230V.

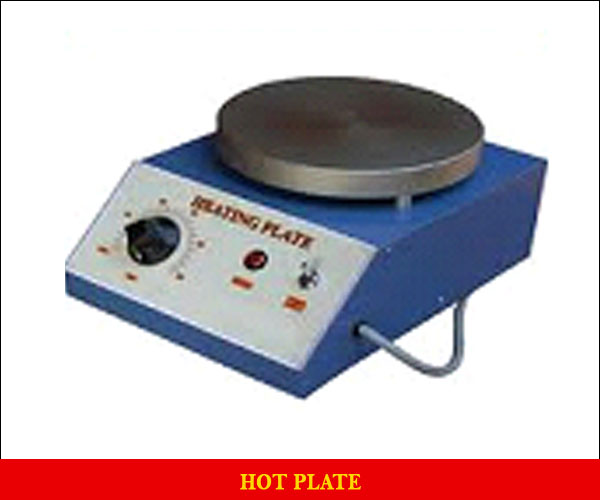

Hot plate

Inner in inches
8” Dia	500W
10” x 12”	1000W
12” x 18”	1500W

The body is beautifully designed and constructed by mild steel and top by iron plate, fitted with kanthal wire coil and insulated ceramic beads. For protection of heat unit is insulated by suitable materials like asbestos and glass wool etc to the body temp range upto 250oC. Controlled by energy regulator

Hot Plate

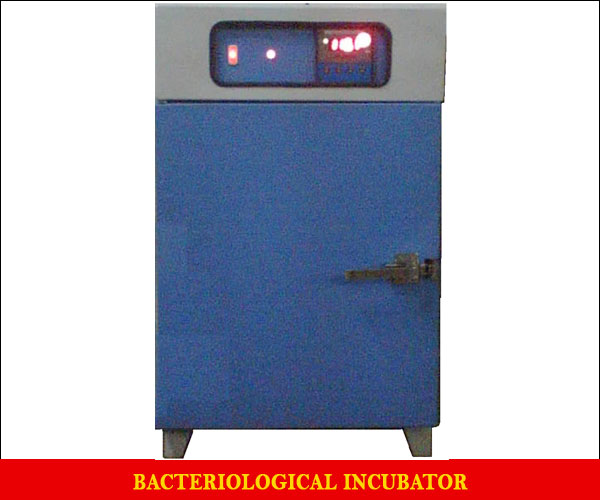

Bacteriological Incubator Temp.5oC above ambient to 80oC ±5.C

Inner in inches W x D x H	Wattage	Trays
14 x 14 x 14	250	2
18 x 18 x 18	500	2
18 x 18 x 24	500	3
24 x 24 x 24	700	3
24 x 24 x 36	1000	4
24 x 24 x 48	1500	5

Bacteriological Incubator

Construction:

Well insulated (Ceramic wool) outer body of 18 G steel sheet powder coated inner 304G stainless steel with shelves and perforated trays. Single door with see through widow or inner full size glass door fitted with heavy duty lock. Air circulation fan for uniform temp. Control panel with uniform front panel sticker, feather touch buttons digital temperature controller cum indicator and protective fuse. With air ventilators, main cord, 3 pin plug top for operation at 230V.

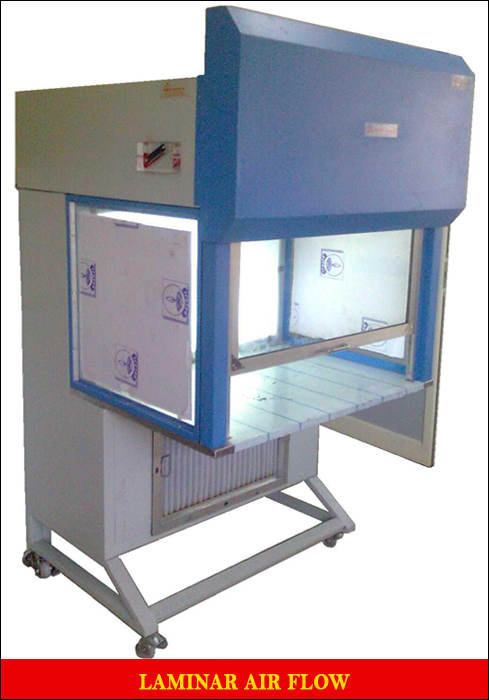

Laminar Air flow complete steel hood with 304G S.S table

Working Area:

2’x 2’ x2’

3’ x 2’ x 2’

4’ x 2’ x2’

6’ x 2’ x 2’

Horizontal:

Vertical:

Powder coated steel construction of 18G. Unit is designed to meet the filtration, illumination, noise and vibration requirements providing particle free air to meet class100 conditions. Double filtered air blows in laminar flow through the worktable at designed velocity of 100 ft/min., 20%. HEPA filter has an efficiency rating as high as 99.99% with cold DOP and 99.97 with hot DOP. All components are of superior quality to give a fine finish combining aesthetic appeal, functioning utility and efficiency

•	The whole unit is easily detachable and portable.
•	Caster wheels with lock ensure mobility with stability.

Laminar Air Flow

•

100% leak proof fittings ensures against contamination.

•

Provides a comfortable sit down working position with footrest.

•

Uniformly well- illuminated S.S. worktable with U.V. light.

•

Uniform perforated S.S. grill gives good look & protection with easy cleaning.

•

Complete powder coated steel construction without variation or rusting.

•

Supplied with manometer, electrical controls, gas connection and other standard provisions.

•

Scientifically designed ducting & blowers ensures perfect air volume of 100 feet / per minute.

•

Single piece HEPA FILTER ensures against dead space inside the working area.

•

Full sliding door with counter weight mechanism & side panels are with polycarbonate, U.V. protected.

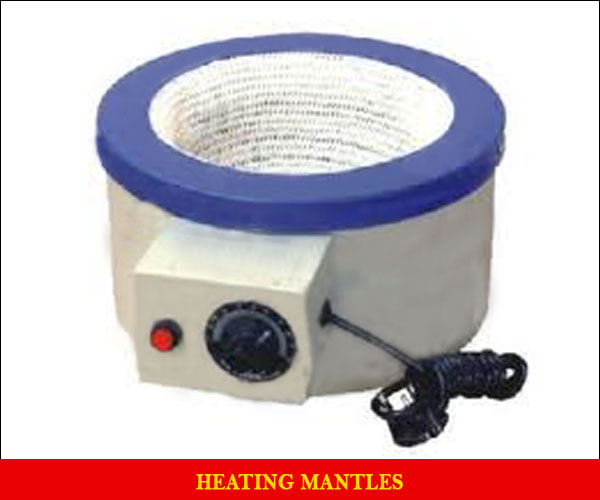

Heating Mantles

Capacity in ml	Watts
100 ml	60
250 ml	150
500 ml	200
1000 ml	300

Heating Mantles

Made by best quality MS housing fitted with knitted glass fabric heating surface suitable for capacities of flasks. Maximum surface temperature is 450oC the working of heater. Available in round and flat bottom, Ranging from 50 ml to 50000 ml flasks capacities power 240 V also beaker type mantle, funnel type mantle and suspended type mantle.

Horizontal shaker

Capacity 24 flasks of 250 ml (Variable Motor)
with SS Lotus clamps

Shaking speed variable 50 to 250 rpm (DC motor of ¼ hp) to work on 230V AC and fitted with digital speed regulator and digital indicator. The whole systems are enclosed in metal case duly powder coated.

Horizontal shaker

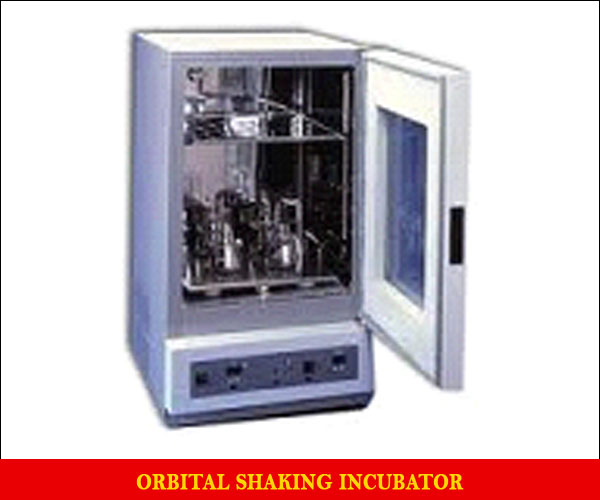

Orbital Shaking Incubator Temp. +5.C above ambient to 60.C

Temp. +5.C to 60.C

Temp. Accuracy ± 0.5.C
•	Stainless steel inner chamber, outer sheet steel powder coated with plexi glass inner door
•	Powerful and continuous air circulator for uniformity of temperature
•	Digital Display temperature controller
•	Shaking Speed 20 to 250-300 rpm variable
•	Step less speed regulator with digital display of speed
•	Universal platform to accommodate interchangeable clamps of assorted sizes for different capacity of flasks OR

Orbital Shaking Incubator

•

Any one of this following platform with clamps

100 ml x 40 flasks

150 ml x 34 flasks

250 ml x 23 flasks

500 ml x 34 flasks

•

1000 ml x 9 flasks

•

Maximum load it carries 15 kg

•

Built in timer 0-24 hrs continuous operation

•

Orbital stroke at 25 mm

•

Chamber illumination by CFL Bulb

•

This unit can be used simultaneously as incubator as well shaker

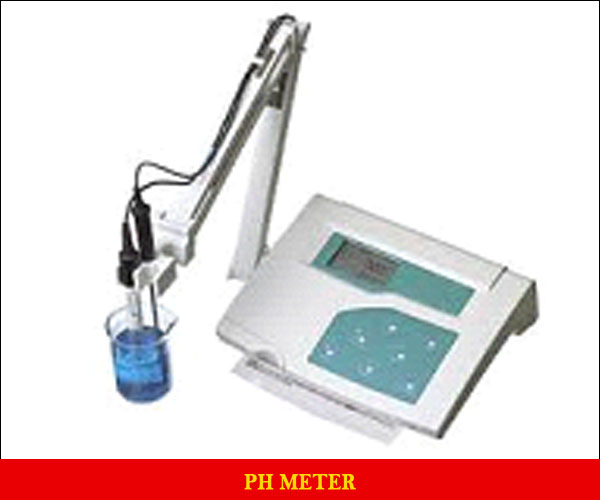

pH Meter Temp. -0 to 14 accuracy: ± 0.1 & 0.01pH


•	Specification: Bench pH / Mv meter, Microprocessor based pH meter ( pH with temperature)
•	Type: table top pH range -0 to 14
•	accuracy: ± 0.1 & 0.01pH

pH Meter

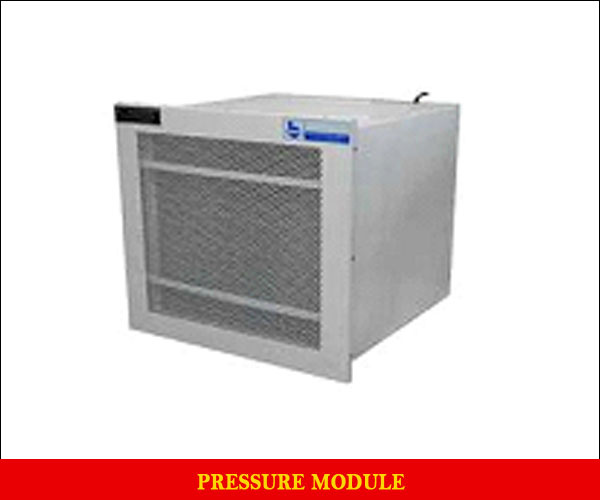

Pressure Module

Size: 18” W x 18” x H x 24”D

Size: 24” W x 24” x H x 30”D

Construction:

Made of Sheet steel in Sandwich construction. Flush fitting type pressurizing module to pressurize and sustain the clean air with HEPA filter of 0.3 microns, pre filter and motor blower assembly it delivers filtered air into the room thus upgrading cleanliness level

This air module builds a positive pressure in the room when compared to the adjacent area. This pressure gradient prevents ingress of particles through door leaks or when the door is opened

Pressure module

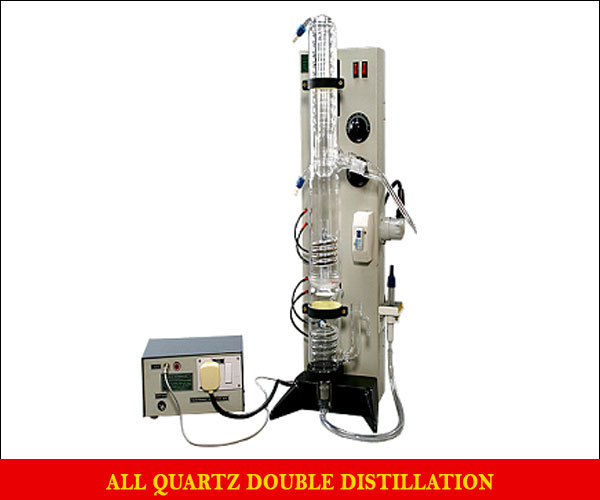

All Quartz Double Distillation

Capacity / Model
1 liters per hour capacity
2 liters per hour capacity
3 liters per hour capacity
5 liters per hour capacity

All quartz Double Distillation

APPLICATION: BEST SUITED FOR DISTILLATION OF HIGH PURITY QUALITATIVE WATER

•

The water distillate obtained from Quartz Double Distillation is beyond when compared with water distillate obtained from other types / method of distillation apparatus.

•

Compact design with all contact of water with High Purity Electronic Grade Transparent Quartz only.

•

The main unit has got a bottom boiler and top boiler with condenser, which can be easily separated (Demountable), for necessary cleaning or maintenance, if required. Bottom vent is provided in bottom boiler for general cleaning and maintenance.

•

The main constitute of Quartz is SiO2 > 99.9%, which makes the apparatus highly resistant to any thermal shock, deverification and resistant to water and acids

•

The electrical heaters are so designed, they do not come in contact with water because they are embedded inside a quartz tube, hence nullifying the possibility of metal contamination by the heaters.

•

The given volume of water during Distillation process is very less, resulting in low heat loss, hence power is saved.

•

The distillate obtained from this apparatus is PYROGEN FREE, it is also free from metal ions.

•

All water connections can be given with threaded connecters.

•

Demountable ball joint. Spiral heaters has better life span than tubular sheathed heater.

•

Compact design, with all contact of water with high purity electronic grade transparent quartz only.

•

The main Unit has got a bottom boiler and top boiler with condenser, which can be easily separated (demountable), for Necessary cleaning or maintenance if required, Bottom vent is provided in bottom boiler for general cleaning and maintenance

•

The electrical heaters are so designed, they do not come into contact with water, because they are embedded inside a Quartz tube, hence nullifying the possibilities of metal contamination by the heaters

•

The given volume of water in the boiler during the process the distillation process is very less, resulting in low heat loss, hence power is saved.

•

The distillate obtained form the apparatus is pyrogen free, it is also free from metal ions.

•

All water connection can be given with threaded connectors.

•

Demountable ball joint. Spiral heaters have life span than rubber sheathed heaters.

Optional


•	Automatic dual cut off system the entire unit stops functioning
•	Water softener reduces water scaling in the boiler

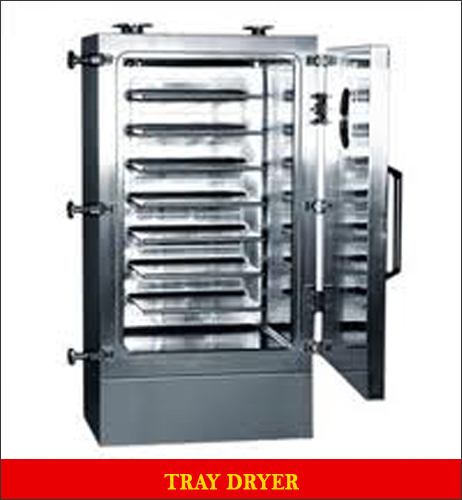

Tray Dryer

Inner in inches
24 x 24 x 36	12 trays	3KW
24 x 24 x 48	16 trays	4KW
24 x 24 x 60	20 trays	6KW


Optional Accessories
•	MS trolleys with shelves 10% extra on the basic price.
•	MS Trays 10%, S.S perforated trays 25% extra on the basic price.

Tray Dryer

Construction

Well insulated outer body powder coated, inner 304G stainless steel with adjustable shelves and trays (optional). Heavy-duty air blower is used for effective air circulations and uniform circulation through the cabinet. Heating elements are placed in the path of moving air duly insulated from the body Single door fitted with heavy duty lock. Control panel with uniform front panel sticker, feather touch buttons digital temperature controller cum indicator with solid state relay and protective fuse. with air ventilators, main cord, 3 pin plug top for operation at 230V.

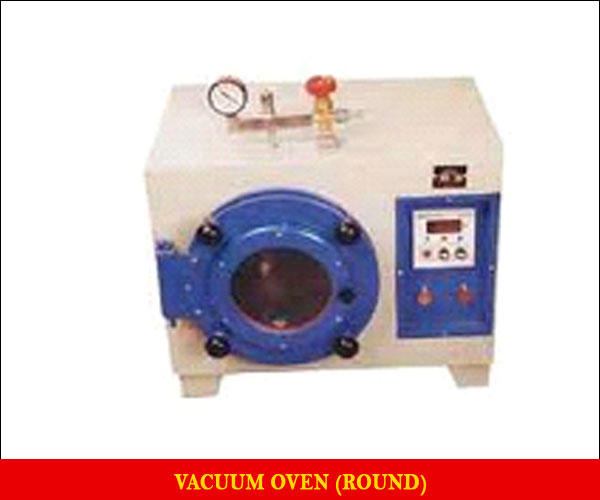

Vacuum Oven (Round) Temp. up to 150oC ±1.C, vacuum attainable up to 760mm.

Inner chamber size:	kw
23 Dia x 30 Depth (cms)	1.0
30 Dia x 40 Depth (cms)	1.5
45 Dia x 60 Depth (cms)	2.0

Vacuum Oven (Round)

Vacuum Oven (square) Temp. up to 150oC ±1.C, vacuum attainable up to 760mm

Inner Sizes:	kw
20 x 20 x 30	1.5
30 x 30 x 30	2.0
30 x 30 x 45	2.5
30 x 45 x 45	3.0
45 x 45 x 45	3.5

Inner made of thick plate 304 G Stainless steel inner chamber, aluminium die cast door with toughened glass window with S.S. & silicon gasket with effective door locking system for 100% sealing to hold vacuum effectively for more than 72 hours with a drop of 50mm vacuum. Control panel with PID digital temp. controller with indication by bourden type vacuum gauge, non return regulator valve.

Complete S.S. Serological Water Bath Temp. up to 80.C ±1.C

Complete made of 304 G stainless steel. S.S Immersion heaters with heater guard. The control panel consists of mains, load indicators, EGO German thermostat, fuse etc.

30L x 20B x 10H cms	1.5
40L x 30B x 10H cms	2.0
50L x 30B x 10H cms	2.5
60L x 40B x 15H cms	3.0

S.S. Serological Water Bath

Optional

•

Digital Temperature Controller with accuracy if  0.5oC

•

Water Circulation Pump

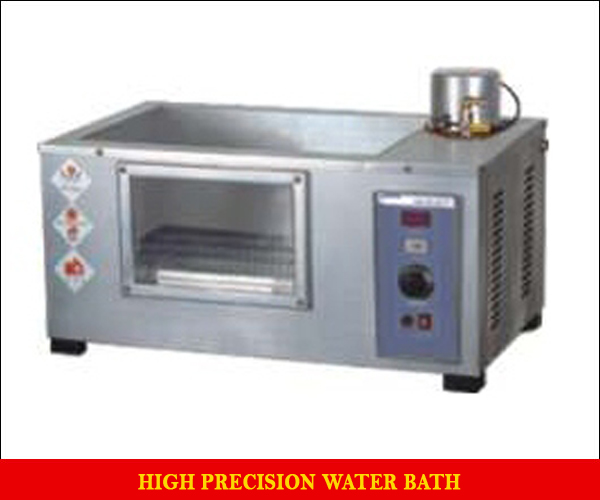

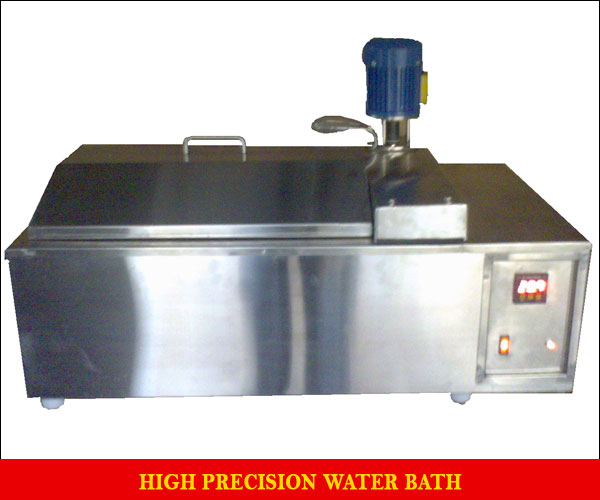

High Precision Water Bath

Inner Size: 430 L x 240 B x 265H mm

Temperature controlled by microprocessor based PID Controller. For high degree of temp. accuracy. Double walled inside stainless steel and outside M.S. powder coated. Fixed circulation stirrer for homogeneity and better temp. accuracy, glass window in the front and lid on top.

High Precision Water Bath

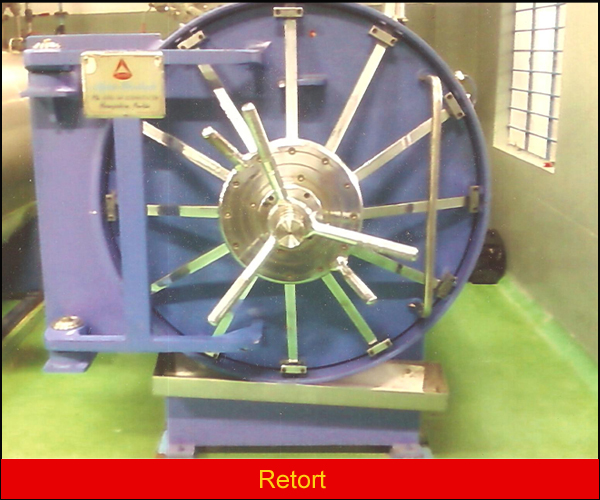

Retort

Inner size 1000mm” Dia x 1000mm” Depth

Optional

•	Steam Boiler, Pressure switch, steam reservoir, water level indicator
•	Air Compressor with receiver & centrifugal high pressure pump with fittings
•	Auto control with user friendly PLC

Retort

Construction

Completely made of stainless steel, ceramic wool insulation with S.S. Cladding supplied with material loading S.S. basket for comfortable loading and unloading operations, water drain, gland nut provision, safety valves, vacuum breaker, 4” dia pressure gauges, railings, stoppers and other special fittings like built-in S.S. Plumbing line which has provisions for automatic steam / air injection through solenoid valves controlled by simple PLC or bypass system for manual operation. The steam and air drawn from external source is injected by specially designed nozzles for uniform distribution of temp. & pressure inside the chamber cooling water is sprayed specially designed sprinklers placed at suitable distance to cover all the area for rapid cooling within 10 mts though high pressure pump. The cold water inlet valve and the drain are manually operated. All the controls are done as per the chamber temperature.

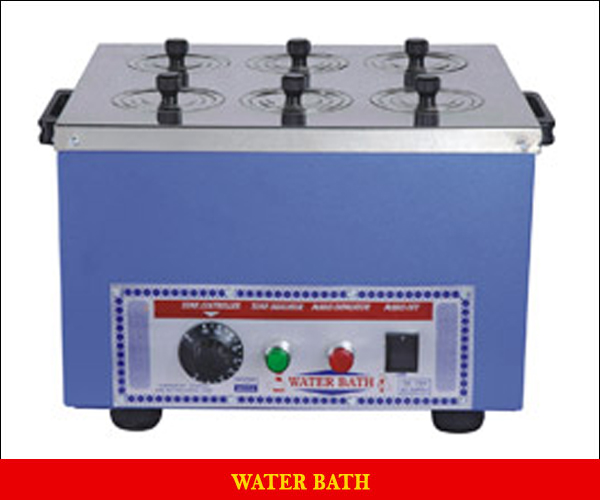

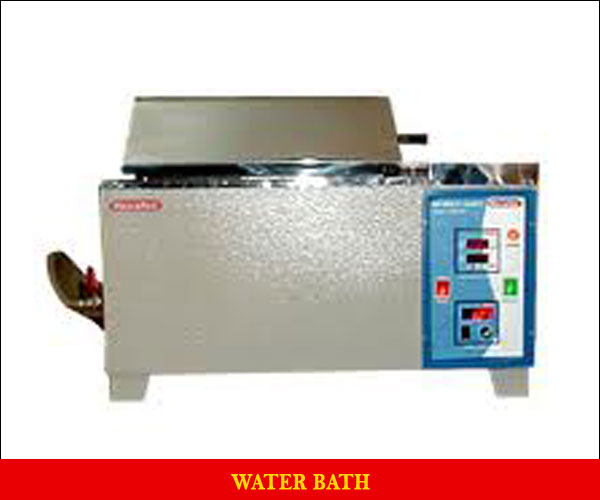

Water Bath 6 holes, 12 holes

Size: 30 x 25 x 10 cm
Single wall with full S S
Single walled with Thermostat full S.S
Double walled with Thermostat

Double walled outer body made of MS with powder coated coating and inner chamber made of Stainless in between insulated with glass wool of 50 mm above. Temperature

Water Bath

above ambient to 100oC controlled by capillary thermostat. The stainless steel lids have 75 mm dia holes and supplies with concentric rings

Distilled Water Still

cap: 2 lts/hr	1.5 KW
cap: 4 lts/hr	3.0 KW
cap: 6 lts/hr	4.0 KW
cap: 8 lts/hr	6.0 KW
cap: 10 lts/hr	8.0 KW

Distilled Water Still

Water stills are made of stainless steel sheet and attractive polished. A conical condenser tube passes centrally through an outer tube carry the inlet water, which helps the condensation process and economics electrical energy. A triple action vapour baffle is provided over a condenser tube, which prevents contaminations of distilled water due to boiling water, splashing into delivery tube. A constant level device is also provided. A wall mounting wall bracket and electrical cord is supplied.

Water Bath Shaker

The units are double walled with MS exterior body with powder coated and inner chamber of stainless steel of 304 G having effective insulation in between. The stainless steel bath has size of 355 mm (W) x 300 mm (D) x 165 mm (H). A special acrylic pyramid type

cover provided avoids evaporation of water and makes condensed water to fall back in the bath. A cock is provided to facilitate draining of Bath contents.

Water Bath Shaker

Bath temperature upto 95°C controlled by Digital Temperature Indicator cum Controller with precise accuracy of ±1°C. Shaking speed range from 40 to 180 strokes per min. Stroke length 25 mm. the unit works on 230 Volts AC supply

The removable stainless steel tray houses lotus clamps for variety of flask capacities. Standard unit supplied with tray accommodating 12 flasks x 100 ml. while trays with the following capacity are available optionally.

500 ml x 4 flasks

2000 ml x 1 flask

250 ml x 6 flasks

1000 ml x 2 flasks

Test Tube racks

Note: No discounts for Optional accessories

APPLICATION: BEST SUITED FOR DISTILLATION OF HIGH PURITY QUALITATIVE WATER

•

The water distillate obtained from Quartz Double Distillation is beyond when compared with water distillate obtained from other types / method of distillation apparatus.

•

Compact design with all contact of water with High Purity Electronic Grade Transparent Quartz only.

•

The main constitute of Quartz is SiO2 > 99.9%, which makes the apparatus highly resistant to any thermal shock, deverification and resistant to water and acids

•

The electrical heaters are so designed, they do not come in contact with water because they are embedded inside a quartz tube, hence nullifying the possibility of metal contamination by the heaters.

•

The given volume of water during Distillation process is very less, resulting in low heat loss, hence power is saved.

•

The distillate obtained from this apparatus is PYROGEN FREE, it is also free from metal ions.

•

All water connections can be given with threaded connecters.

•

Demountable ball joint. Spiral heaters has better life span than tubular sheathed heater.

Terms and Conditions:

•

All prices and terms are Ex- Bangalore.

•

Sales tax extra as applicable at the time of delivery and full sales tax will be charged if sales tax declaration form is not given in advance along with order.

•

We reserve the right to change specifications and prices without prior notice. Prices and government levies will be charged as applicable at the time of delivery.

•

Price is exclusive of packing, forwarding, freight, transit insurance, Octroi and delivery charges at client’s place.

•

Prices do not include free installation, demonstration and commissioning at buyer’s place

•

We are not responsible for transit damage and loss. Goods will be dispatched without insurance at buyer’s risk.

•

Payment 50 % in advance along with order by a bank draft on Bangalore & balance against dispatch documents through your banker’s / collection only.

•

Guarantee all the instruments alone guaranteed for period of one year against any manufacturing defects and faulty performance only.

(All disputes are subject to Bangalore jurisdiction only)

VIJAYSURIYA

for SUNRISESCIENTIFIC INC

Mobile: 9845422588

Our Products

Bio process Equipments

•	Vertical Autoclave
•	B.O.D. Incubator Temp
•	Laminar Air flow
•	Heating Mantles
•	Distilled Water Still



Biotech Industries

•	Digital Colony counter
•	Humidity Oven
•	Hot Air Oven
•	Pressure Module
•	Vacuum Oven (Round)



Tissue Culture Industries

•	Laminar Air flow
•	Static Pass Box
•	Tray Dryer
•	Baby Retort
•	Distilled Water Still
