| 1 |
Vertical Autoclave (Complete Stainless Steel) |
Inner in inches(Dia.xHt) |
Capacity |
kw |
12 x 22 |
40 lit. |
2 |
14 x 24 |
60 lit. |
3 |
16 x 28 |
100 lit. |
4 |
18 x 30 |
125 lit. |
5 |
22 x 30 |
185 lit. |
6 |
24 x 36 |
260 lit |
9 |
|
| |
| Optional: |
| |
| • |
Auto pressure control switch to set any min. and max. Pressure level |
| • |
Programmable temperature controller cum timer for auto cutoff with alarm. |
| • |
Low water level cutoff with S.S. heater to avoid heater Damage dry run. |
|
| |
|
 |
 |
| |
Vertical Autoclave |
| |
|
| Inner 2mm thick plate and outer chamber made of 304 Grade S.S. with quality insulation, supplied with heavy duty S.S lid, silicon gasket, swing nut S.S locking system, suitable no. of material loading perforated baskets in S.S. lid opening by pedal lifting device. Control panel with digital controller cum timer (optional). The unit supplied with safety valve, mechanical spring-loaded valve, steam release valve, 4” dia pressure gauge durable S.S. heaters to work on 230V. |
|
| 2 |
Horizontal Cylindrical Autoclave – with Radial Locking System. |
Inner in inches(Dia. x Depth) |
Capacity |
kw |
16 x 28 |
90 lit |
4 |
18 x 30 |
120 lit |
5 |
22 x 30 |
175 lit |
6 |
22 x 36 |
225 lit |
7 |
24 x 36 |
260 lit |
9 |
30 x 48 |
550 lit |
12 |
|
|
 |
| |
Horizontal Cylindrical Autoclave |
|
| Optional: |
| |
|
| • |
Auto pressure control switch to set any min. and max. pressure level. |
| • |
Programmable temp. cum timer for auto cutoff with alarm. |
| • |
Low water level cutoff with S.S. heater to avoid heater damage dry run. |
| • |
Triple Jacket for dry steam sterilization with moisture traps 30% EXTRA on the basic price. |
| |
| Inner and outer chamber made of 304 Grade S.S. with quality insulation, lid with radial locking system, Silicon gasket. Chamber Mounted on M. S sturdy stand with the steam boiler beneath. Suitable no. of S.S. perforated trays with shelves for easy handling of materials. Control panel with Programmable digital controller cum timer, auto pressure switch (optional). Supplied with safety valve, mechanical spring loaded valve, steam release valve, 4” Dia. pressure gauge durable S.S. heaters to work on 230V/ 415 V |
|
| 3 |
Bio-Safety Cabinet class II |
Working Area |
3’ x 2’ x 2’ |
4’ x 2’x 2’ |
Construction |
CRCA Steel sheet 16G (powder coated). |
Filtration I |
Pre-filter non woven pleated (5 micron particles). |
| Filtration II |
HEPA filter 0.3micron at an efficiency of 99.97% |
Motor Blower |
¾ HP motor with aluminium curved impeller. |
S.S. Work Table |
5mm perforation at 10mm pitch on front and rear edges. |
Work Surface |
SS with perforation at 5”along the front and rear edges. |
| Manometer |
differential pressure between the Hepa plenum and the atmosphere. |
| Lighting |
fluorescent lamps and U.V lamps with guard for eye protection |
|
|
 |
| |
Bio Safety Cabinet Class II |
| |
| |
| |
| |
|
| Special features: |
| |
|
| • |
Flame umbrella made in S.S with gas cock & electric sockets at sides. |
| • |
Powder coated steel construction mounted on castor wheels with lock for mobility with
Stability |
| • |
Protects the product and the user with zero contamination risk. |
| • |
Vertical laminar airflow with air intake across access opening. |
| • |
20% air exhausted, via HEPA filter, 80% re-circulated into the sterile area. |
| • |
Negative pressure in all areas which are subject to contamination risk ensures, that even if a leak should occur in the sealing system, all particles will be returned to the pressure chamber and will be absorbed by the air circulation and the exhaust air filter. |
| • |
Special exhaust system: to throw the contaminated air in the atmosphere safely. |
| • |
Provides a comfortable sit down working position with foot rest. |
| • |
STAINLESS STEEL perforated grill to the hepa filter gives good protection. |
| • |
Full sliding clear polycarbonate door with adjustable heights. |
| • |
Single piece HEPA FILTER ensures against dead air space inside the working area. |
| |
| Optional: |
| |
|
| • |
Exhaust ducting with suitable fittings per running feet. |
| • |
Virus burn out unit: ensures total destruction of pathogens
Present in air being exhausted from the cabinet. |
|
| 4 |
Laminar Air flow complete steel hood with 304G S.S table |
Working Area: |
2’x 2’ x2’ |
3’ x 2’ x 2’ |
4’ x 2’ x2’ |
6’ x 2’ x 2’ |
Horizontal: |
|
|
Vertical: |
|
|
| Powder coated steel construction of 18G. Unit is designed to meet the filtration, illumination, noise and vibration requirements providing particle free air to meet class100 conditions. Double filtered air blows in laminar flow through the worktable at designed velocity of 100 ft/min., 20%. HEPA filter has an efficiency rating as high as 99.99% with cold DOP and 99.97 with hot DOP. All components are of superior quality to give a fine finish combining aesthetic appeal, functioning utility and efficiency |
|
| • |
The whole unit is easily detachable and portable. |
| • |
Caster wheels with lock ensure mobility with stability. |
| • |
100% leak proof fittings ensures against contamination. |
| • |
Provides a comfortable sit down working position with footrest. |
|
|
|
|
 |
| |
Laminar Air Flow |
|
| • |
Uniformly well- illuminated S.S. worktable with U.V. light. |
| • |
Uniform perforated S.S. grill gives good look & protection with easy cleaning. |
| • |
Complete powder coated steel construction without variation or rusting. |
| • |
Supplied with manometer, electrical controls, gas connection and other standard provisions. |
| • |
Scientifically designed ducting & blowers ensures perfect air volume of 100 feet / per minute. |
| • |
Single piece HEPA FILTER ensures against dead space inside the working area. |
| • |
Full sliding door with counter weight mechanism & side panels are with polycarbonate, U.V. protected. |
|
| 5 |

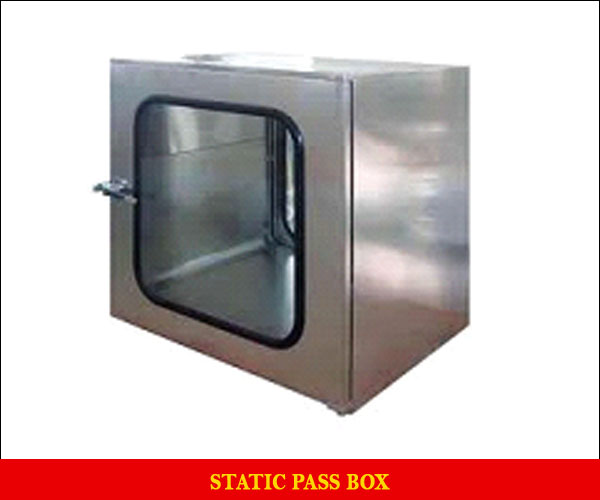

Static Pass Box |
| “SUNRISE” Clean Room Static Pass Box is self-contained units installed at the entrance to clean rooms. They minimize the amount of particulate contamination entering the clean room by reducing operator traffic. Equipment and materials are passed into the clean room via the static pass box, which is equipped with a mechanical interlock system that prevents both doors from being opened at the same time. |
| |
| The SUNRISE Clean Room Static Pass Box is an inexpensive way to maintain the cleanliness of your clean room and is easy to install and adaptable to existing facilities. |
|
|
 |
| |
Static Pass Box |
|
| |
| Features |
| |
|
| • |
Rigid and rust-proof construction of electro-galvanized steel sheets |
| • |
Abrasion-resistant epoxy-coated steel |
| • |
Easy to clan stainless steel base |
| • |
Glass or acrylic panel door gives clear view of internal chamber |
| • |
Mechanical interlock system with reinforced construction reduces cross-contamination |
| • |
Easy to install and adaptable to existing facilities |
| |
| |
Dynamic Pass Box |
Technical Specification
| Velocity |
90± 10 fpm |
| Cleanliness |
Class 100 |
| Standard
Electromagnetic interlocking |
ISO 14644-1 |
|
|
|
| |
|
|
| |
| Features |
| |
|
| • |
Rigid and rust-proof construction of electro-galvanized steel sheets |
| • |
Abrasion-resistant epoxy-coated steel |
| • |
Easy to clan stainless steel base |
| • |
Glass or acrylic panel door gives clear view of internal chamber |
| • |
Mechanical interlock system with reinforced construction reduces cross-contamination |
| • |
Easy to install and adaptable to existing facilities |
|
| 6 |
Tray Dryer |
| Inner in inches |
| 24 x 24 x 36 |
12 trays |
3KW |
| 24 x 24 x 48 |
16 trays |
4KW |
| 24 x 24 x 60 |
20 trays |
6KW |
| |
|
|
| Optional Accessories |
|
|
| |
|
| • |
MS trolleys with shelves 10% extra on the basic price. |
| • |
MS Trays 10%, S.S perforated trays 25% extra on the basic price. |
|
|
 |
| |
Tray Dryer |
|
| |
| Construction |
| |
| Well insulated outer body powder coated, inner 304G stainless steel with adjustable shelves and trays (optional). Heavy-duty air blower is used for effective air circulations and uniform circulation through the cabinet. Heating elements are placed in the path of moving air duly insulated from the body Single door fitted with heavy duty lock. Control panel with uniform front panel sticker, feather touch buttons digital temperature controller cum indicator with solid state relay and protective fuse. with air ventilators, main cord, 3 pin plug top for operation at 230V. |
|
| 7 |

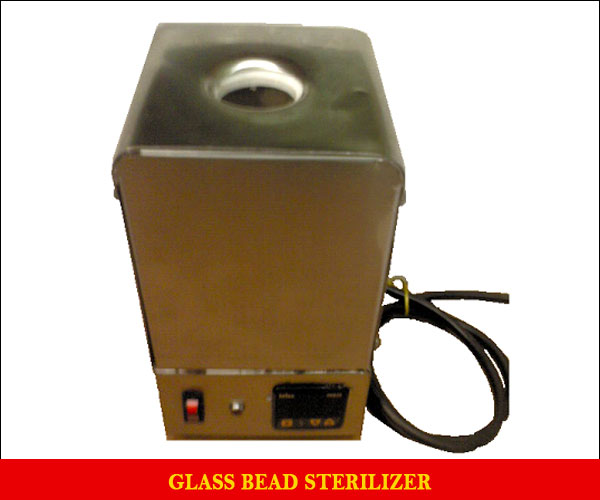

Glass Bead Sterilizer |
|
|
| 8 |
Retort |
| Inner size 1000mm” Dia x 1000mm” Depth |
| |
| Optional |
|
|
| |
|
| • |
Steam Boiler, Pressure switch, steam reservoir, water level indicator |
| • |
Air Compressor with receiver & centrifugal high pressure pump with fittings |
| • |
Auto control with user friendly PLC |
|
|
 |
| |
Retort |
|
| |
| Construction |
| |
| Completely made of stainless steel, ceramic wool insulation with S.S. Cladding supplied with material loading S.S. basket for comfortable loading and unloading operations, water drain, gland nut provision, safety valves, vacuum breaker, 4” dia pressure gauges, railings, stoppers and other special fittings like built-in S.S. Plumbing line which has provisions for automatic steam / air injection through solenoid valves controlled by simple PLC or bypass system for manual operation. The steam and air drawn from external source is injected by specially designed nozzles for uniform distribution of temp. & pressure inside the chamber cooling water is sprayed specially designed sprinklers placed at suitable distance to cover all the area for rapid cooling within 10 mts though high pressure pump. The cold water inlet valve and the drain are manually operated. All the controls are done as per the chamber temperature. |
|
| 9 |
Distilled Water Still |
cap: 2 lts/hr |
1.5 KW |
cap: 4 lts/hr |
3.0 KW |
cap: 6 lts/hr |
4.0 KW |
cap: 8 lts/hr |
6.0 KW |
cap: 10 lts/hr |
8.0 KW |
|
|
 |
| |
|
|
| Water stills are made of stainless steel sheet and attractive polished. A conical condenser tube passes centrally through an outer tube carry the inlet water, which helps the condensation process and economics electrical energy. A triple action vapour baffle is provided over a condenser tube, which prevents contaminations of distilled water due to boiling water, splashing into delivery tube. A constant level device is also provided. A wall mounting wall bracket and electrical cord is supplied. |
| |
| Note: No discounts for Optional accessories |
| |
| Terms and Conditions: |
| |
| • |
All prices and terms are Ex- Bangalore. |
| • |
Sales tax extra as applicable at the time of delivery and full sales tax will be charged if sales tax declaration form is not given in advance along with order. |
| • |
We reserve the right to change specifications and prices without prior notice. Prices and government levies will be charged as applicable at the time of delivery. |
| • |
Price is exclusive of packing, forwarding, freight, transit insurance, Octroi and delivery charges at client’s place. |
| • |
Prices do not include free installation, demonstration and commissioning at buyer’s place |
| • |
We are not responsible for transit damage and loss. Goods will be dispatched without insurance at buyer’s risk. |
| • |
Payment 50 % in advance along with order by a bank draft on Bangalore & balance against dispatch documents through your banker’s / collection only. |
| • |
Guarantee all the instruments alone guaranteed for period of one year against any manufacturing defects and faulty performance only. |
| |
| (All disputes are subject to Bangalore jurisdiction only) |
| VIJAYSURIYA |
| for SUNRISESCIENTIFIC INC |
| Mobile: 9845422588 |
| |
|
